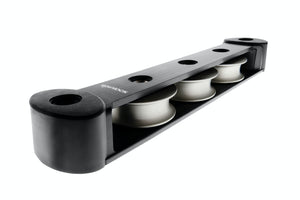

TC50 Organiser

T-Series organisers lead multiple lines back from the mast to banks of powerclutches

  • TC50 organisers are specially developed for higher loads
  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Double stack versions available
  • Can be used as an Aft Organiser to divert lines from a clutch to a winch
Sheave Diameter / Type
TC50 - 50mm (2") alloy
TC50/D - 50mm (2") alloy
SWL per sheave
TC50 - 1500kg (3300lbs)
TC50/D - 1000kg (2200lbs) upper row
TC50/D - 1500kg (3300lbs) lower row
Total SWL per unit
TC50 - Number of sheaves x 750kg (1650lbs)
TC50/D - Number of sheaves x 500kg (1100lbs) upper row
TC50/D - Number of sheaves x750kg (1650lbs) lower row
Line Diameter
TC50 - Up to 14mm (9/16")
TC50/D - Up to 14mm (9/16")
TC50 - 575g (20.1oz) for a 2 sheave organiser
add 130g (4.6oz) per extra sheave
TC50/D - 750g (26.3oz) for a 2 sheave organiser
add 215g (7.5oz) per extra pair of sheaves
TC50 - M8 (5/16") CSK Supplied
TC50/D - M8 (5/16") CSK Supplied
